MM Kembla has been providing our customers with the highest quality and most reliable products and services for over 100 years. Manufactured with cross-linked polyethylene, Kembla KemPex’s PE-Xa tube boasts a more elaborate polyethylene performance without losing the excellent properties of thermoplastics.

Our PE-Xa tubes, are designed and engineered for the New Zealand plumbing and gas industry with excellent corrosion resistance, flexibility and toughness, we can help you save time by making any piping installation, quicker and simpler. Use our KemPex Crimp, or Slide fittings to complete your connection system.

Back to Standards

Kembla KemPex PE-Xa Tube AS2537 & AS2492

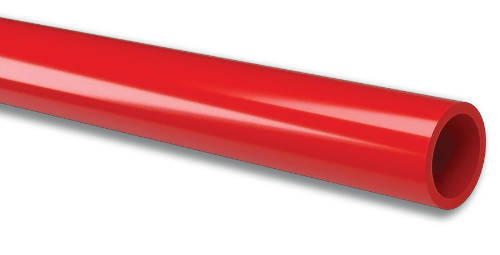

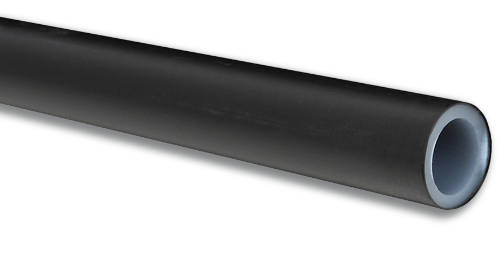

Kembla KemPex seamless PE-Xa tube is manufactured to Australian Standard AS2537 & AS2492. KemPex PE-Xa pipe is made of cross-linked polyethylene. Kembla KemPex utilises the production method of silane cross-linking that provides PE-Xa pipe with superior chemical and mechanical performance. KemPex PE-Xa pipe is available in red, green, lilac and black. It also comes with a black anti UV conduit, and is ideal for use with hot and cold potable water supply, recycled and rain water installations.

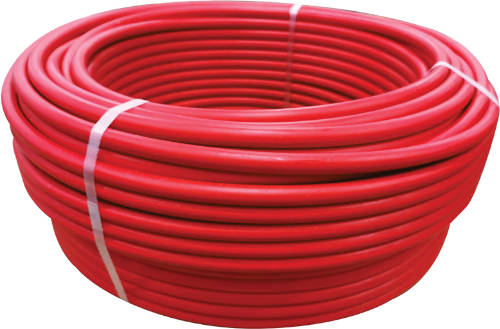

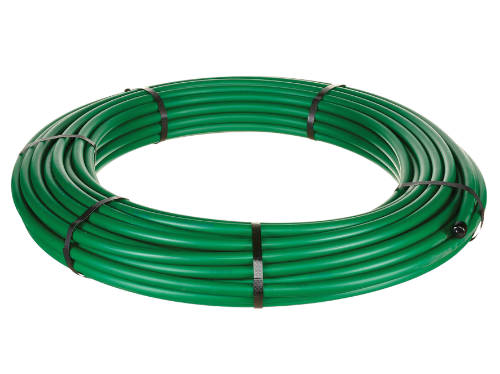

Kembla KemPex PE-Xa tube is also available in straights, pre-lagged straights and coils suitable for a variety of end-use applications where tube is to be protected from aggressive environments, concealed and/or to indicate the medium being transported (e.g. recycled water). Ideal for drinking water, all Kembla KemPex PE-Xa tubes are Watermark Certified (Licence No. WMKA 2492) and meet the stringent testing requirements of ASTM F876 & ASTM F876 standard specification for cross-linked polyethylene (PEX) hot and cold-water distribution systems.

Kembla KemPex PE-Xa – Two Connection Solutions

  • KemPex Crimp is an easy to install crimp pipe and fitting connection system.
  • KemPex Slide is a sliding sleeve pipe and fitting connection system.

Kembla KemPex PE-Xa piping connection system can be used in the following applications: hot and cold water supply, recycled and rainwater  installations.

  • Backed by MM Kembla’s reputation for quality for nearly 100 years.
  • The KemPex PE-Xa piping connection system complies with Australian Standards AS2537 and AS2492 and is certified by SAI Global (licence numbers WMK25717 and WMK25757).
  • KemPex uses Crimp or Slide fittings which are quick and simple installation.
  • The fittings have the longest joining barb on the market ensures a water tight joint every time.
  • KemPex carries a 25 year warranty.

  • KemPex PE-Xa is a flexible, high strength cross-linked polyethylene piping system.
  • Available in piping lengths, coils and conduit diameters (16-20mm),
  • Rated for standard operation at 1000kPa and 70˚C and a short term maximum temperature of 95˚C.
  • Low thermal conductivity helps to reduce heat loss from hot water services.
  • Tested to AS/NZS 4020 suitable for use in contact with potable water.
  • Smooth inner wall ensures less pressure loss.
  • Service life up to 25 years.

A full range of automatic and manual tools and jaws are available for purchase

A wide range of piping accessories are available for purchase.

25 Years

MM Brands warrants Kembla KemPex Pipe pipes and fittings for a period of 25 years against faulty materials or workmanship.

KemPex PE-Xa Tube to 2537 & AS2492 – Product Tables

Diameter (DN)Wall ThicknessLength (Metres)Water Code
16mm 2.2mm 5 metres 100116
20mm 2.8mm 5 metres 100120
25mm 3.5mm 5 metres 100125
32mm 3.5mm 5 metres 100132

Diameter (DN)Wall ThicknessLength (Metres)Water Code
16mm 2.2mm 25 metres101316
20mm 2.8mm 25 metres101320
25mm 3.5mm 50 metres100225
32mm 4.4mm 50 metres100232
16mm 2.2mm 100 metres100216
20mm 2.8mm 100 metres100220

Diameter (DN)Wall ThicknessLength (Metres)Water Code
16mm 50 metres 100016
20mm 50 metres 100020
25mm 50 metres 100025
32mm 25 metres 100032

Diameter (DN)Wall ThicknessLength (Metres)Water Code
16mm 2.2mm 5 metres100365
20mm 2.8mm 5 metres100366

Diameter (DN)Wall ThicknessLength (Metres)Water Code
16mm 2.2mm 25 metres 101360
20mm 2.8mm 25 metres 101361

Diameter (DN)Wall ThicknessLength (Metres)Water Code
16mm 2.2mm 50 metres 100616
20mm 2.8mm 50 metres 100620

Diameter (DN)Wall ThicknessLength (Metres)Water Code
16mm 2.2mm 5 metres 100510
20mm 2.8mm 5 metres 100511

Diameter (DN)Wall ThicknessLength (Metres)Water Code
16mm 2.2mm 50 metres100516
20mm 2.8mm 50 metres100520
