Kembla British/European Standard Copper Tube BS EN 1057
The EN 1057 Kembla Copper Tube range is suitable for drinking water purposes, both hot and cold, sanitation, central heating, gas and general engineering applications. The Kembla range is available in half hard and hard drawn tempers and is supplied in diameters from 15mm to 267mm diameter and a variety of wall thicknesses to meet Table X and Table Y requirements. Standard lengths of 5.8m are manufactured to facilitate ease of containerisation and stock of EN 1057 is available in Port Kembla, Australia.
Kemlag Plus® and Kemline Plus® pre-insulated polyethylene covered copper tubes are suitable for a variety of applications including burying in corrosive soils, laying under floors and concrete slabs (where approved), chasing into walls, exposed or aggressive environments and for reducing noise transmission. The covering is all Low Smoke Halogen Free (LSHF) and is suitable for continuous operating temperatures up to 90°C.
Kemlag Plus® insulation is internally grooved to entrap air and provide a thermal barrier. It is suitable for both hot and cold water plumbing and is useful in preventing condensation. Kemline Plus® is suitable for cold water applications and may be concealed or exposed to aggressive environments and is also suitable for gas line installations.
MM Kembla has been supplying EN 1057 for over 50 years and is the market leader throughout South East Asia. MM Kembla also exports to distributors in many countries around the world for immediate delivery.
All tubes are fully certified by testing authorities in Australia, Hong Kong, Singapore, Malaysia, the Middle East and the United Kingdom and are guaranteed with a 25 Year Warranty.
KemCore Technology & Press Fit System Optimisation
Utilising our unique and innovative KemCore technology for sizes up to and including 54mm, Kembla Copper Tube has superior concentricity and consistent wall thickness and is optimised for superior performance with press fittings. MM Kembla’s KemCore technology uses unrivalled measurement systems and process controls to deliver optimal structural integrity to ensure long term performance and reliability and optimal conditions under force when fittings are pressed onto it when used with press-fit/crimp systems.
- Plumbing
- Gas Fittings
- Drainage & Sanitation
- Central Heating
- General Engineering
- Backed by MM Kembla’s reputation for quality, reliability and service for over 100 years
- Independently certified to BS EN 1057 – Standards Mark Licence SMKP21391, BSI Certificate BMP 644675
- 25 Year Manufacturers Warranty
- Manufactured to BS EN 1057 and strict MM Kembla internal quality standards and specifications
- Superior internal carbon cleanliness providing improved corrosion resistance
- Manufactured using KemCore technology – superior concentricity, uniform wall thickness and optimised for use with press fittings
- Ability to handle high working pressures and extreme high and low temperatures (max service temperature of 200°C)
- Superior flow rates due to low surface roughness
- Minimal linear expansion and space requirements
- Less bracketing/supports required than other piping systems
- Excellent thermal conductivity – perfect energy efficient exchange of hot or cold fluids
- Hygienic – fights and inhibits the proliferation of harmful bacteria and pathogens, ensuring high quality drinking water
- Contains no additives, volatile organic compounds (VOC’s) or pigments and synthetic compounds
- Strong & Reliable – provides protection to external damage, punctures, corrosion and system failure and is resistant to vermin attack
- 10 times stronger than plastic pipe materials
- UV resistant – suitable to be used in direct sunlight
- Fire Resistant – Does not burn or support combustion, spread flame or emit toxic fumes during fire
- Seamless Phosphorous Deoxidised Copper Tube, made of 99.90% Copper (Alloy C12200)
- Available in sizes 15mm up to and including 267mm.
- Available as ‘Hard Drawn’ straight lengths and (HH) ‘Half Hard’ straight lengths.
- 5.8m lengths for easy containerisation and stock available at our Port Kembla, Australia warehouse
- Kemlag Plus® and Kemline Plus® pre-insulated polyethylene covered copper tubes are suitable for a variety of applications including burying in corrosive soils, laying under floors and concrete slabs (where approved), chasing into walls, exposed or aggressive environments and for reducing noise transmission. The covering is all Low Smoke Halogen Free (LSHF) and is suitable for continuous operating temperatures up to 90°C
- How do you know you are using Kembla copper tube? Look for MM Kembla on the tubes inkmark or contact us and reference the 7 digit production code on the tube.
25 Years
MM Kembla’s manufacturing processes and quality systems are built upon over 100 years of experience in manufacturing copper tube in Port Kembla, Australia. An intensive ISO 9001 certified quality control system is applied to all MM Kembla BS EN 1057 copper plumbing tube to ensure all MM Kembla seamless copper tube is made from high residual phosphorous deoxidised copper classified as C12200 Alloy and conforms to BS EN 1057 certification requirements.
MM Kembla warrants that if any installation using MM Kembla copper tube becomes defective or fails and MM Kembla is notified of the details and is satisfied that the defect or failure was a result of a manufacturing defect and not the result of faulty specification, installation or incompatible environment, MM Kembla will replace or repair the defective goods and make good the installation.
Copper Tube to BS EN 1057 – Product Tables
Kembla BS EN 1057 copper tubes manufactured to Table X are available as half hard and hard drawn temper and sizes 15mm to 267mm outside diameter in 5.8m straight lengths.
| Item Code | Nominal Outside Diameter (mm) | Nominal Wall Thickness (mm) | kg per 5.8m length ** | Pack Qty. | *Safe Working Pressure - Annealed (kPa) | *Safe Working Pressure - As Supplied (kPa) | |
|---|---|---|---|---|---|---|---|
| T20942 | 15 # | 0.7 | 1.63 | 200 | 4500 | 5870 # | |
| T14274 | 22 # | 0.9 | 3.09 | 100 | 3920 | 5120 # | |
| T14312 | 28 # | 0.9 | 3.98 | 50 | 3060 | 3990 # | |
| T14215 | 35 | 1.2 | 6.61 | 50 | 3270 | 5150 | |
| T63593 | 42 | 1.2 | 7.98 | 50 | 2710 | 4270 | |
| T21972 | 54 | 1.2 | 10.33 | 30 | 2090 | 3300 | |
| T82474 | 66.7 | 1.2 | 12.81 | 25 | 1690 | 2660 | |
| T62228 | 76.1 | 1.5 | 18.24 | 20 | 1850 | 2920 | |
| T17265 | 108 | 1.5 | 26.04 | 10 | 1300 | 2040 | |
| T84302 | 133 | 1.5 | 32.15 | 10 | 1050 | 1650 | |
| T82432 | 159 | 2.0 | 51.18 | 5 | 1170 | 1850 | |
| T20105 | 219 | 3.0 | 105.61 | 1 | 1280 | 2010 | |
| T20415 | 267 | 3.0 | 129.08 | 1 | 1050 | 1650 |
* Based on annealed temper at 65°C
** Based on nominal diameter and thickness
# Manufactured in half hard temper, all other sizes are hard drawn
Kembla BS EN 1057 copper tubes manufactured to Table Y contain thicker walls than the Table X option and are available as half hard and hard drawn temper and sizes 15mm to 267mm outside diameter in 5.8m straight lengths.
| Item Code | Nominal Outside Diameter (mm) | Nominal Wall Thickness (mm) | kg per 5.8m length ** | Pack Qty. | *Safe Working Pressure - Annealed (kPa) | *Safe Working Pressure - As Supplied (kPa) | |
|---|---|---|---|---|---|---|---|
| T14150 | 15 # | 1.0 | 2.28 | 200 | 6570 | 8570 # | |
| T76640 | 22 # | 1.2 | 4.07 | 100 | 5310 | 6920 # | |
| T91224 | 28 # | 1.2 | 5.24 | 50 | 4120 | 5370 # | |
| T19372 | 35 | 1.5 | 8.19 | 50 | 4120 | 6490 | |
| T19364 | 42 | 1.5 | 9.90 | 50 | 3410 | 5370 | |
| T54150## | 54 | 1.5 | 12.83 | 25 | 2629 | 4143 | |
| T31861 | 54 | 2.0 | 16.95 | 25 | 3540 | 5580 | |
| T52931 | 66.7 | 2.0 | 21.09 | 25 | 2840 | 4480 | |
| T65641 | 76.1 | 2.0 | 24.15 | 20 | 2480 | 3910 | |
| T23043 | 108 | 2.5 | 42.99 | 10 | 2180 | 3440 | |
| T14567 | 133 | 2.0 | 42.70 | 10 | 1410 | 2210 | |
| T14335 | 159 | 3.0 | 76.27 | 5 | 1770 | 2790 |
* Based on annealed temper at 65°C
** Based on nominal diameter and thickness
# Manufactured in half hard temper, all other sizes are hard drawn
## Developed and suitable for use with 54mm EN1254 KemPress Fittings and marked as “EN1057 KEMPRESS”
Kembla Kemlag Plus BS EN 1057 copper tubes are pre-insulated polyethylene covered copper tubes manufactured to both Table X and Table Y sizes in half hard and hard drawn temper. Low Smoke Halogen Free (LSHF) and suitable for continuous operating temperatures up to 90°C. Kemlag Plus® insulation is internally grooved to entrap air and provide a thermal barrier and is suitable for both hot and cold water plumbing and is useful in preventing condensation.
| Item Code | Nominal Outside Diameter (mm) | Nominal Wall Thickness (mm) | kg per 5.8m length ** | Master Bundle Qty | *Safe Working Pressure - Annealed (kPa) | *Safe Working Pressure - As Supplied (kPa) |
|---|---|---|---|---|---|---|
| Table X | ||||||
| T84212 | 15 # | 0.7 | 1.63 | 500 | 4500 | 5870 # |
| T20192 | 22 # | 0.9 | 3.09 | 300 | 3920 | 5120 # |
| T19488 | 28 # | 0.9 | 3.98 | 200 | 3060 | 3990 # |
| T26271 | 35 | 1.2 | 6.61 | 100 | 3270 | 5150 |
| T63657 | 42 | 1.2 | 7.98 | 100 | 2710 | 4270 |
| T58271 | 54 | 1.2 | 10.33 | 50 | 2090 | 3300 |
| Table Y | ||||||
| T70025 | 15 # | 1.0 | 2.28 | 200 | 6570 | 8570 # |
| T21741 | 22 # | 1.2 | 4.07 | 100 | 5310 | 6920 # |
| T56146 | 28 # | 1.2 | 5.24 | 50 | 4120 | 5370 # |
| T26204 | 35 | 1.5 | 8.19 | 50 | 4120 | 6490 |
| T86606 | 42 | 1.5 | 9.90 | 50 | 3410 | 5370 |
| T69035 | 54 | 2.0 | 16.95 | 25 | 3540 | 5580 |
* Based on annealed temper at 65°C
** Based on nominal diameter and thickness
# Manufactured in half hard temper, all other sizes are hard drawn

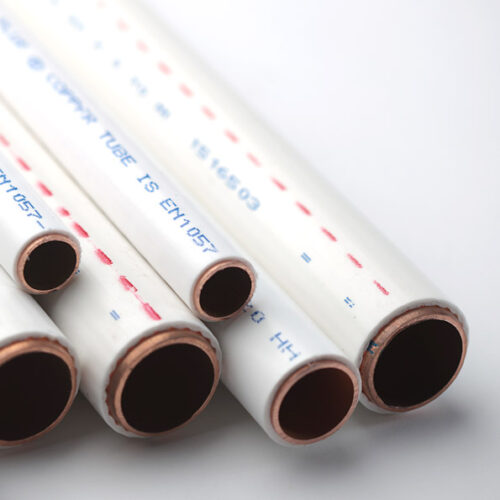

Kembla Kemline Plus BS EN 1057 copper tubes are pre-insulated polyethylene covered copper tubes manufactured to both Table X and Table Y sizes in half hard and hard drawn temper. Kemline PLus® is suitable for cold water applications and may be concealed or exposed to aggressive environments and is also suitable for gas line installations.
| Item Code | Nominal Outside Diameter (mm) | Nominal Wall Thickness (mm) | kg per 5.8m length ** | Master Bundle Qty | *Safe Working Pressure - Annealed (kPa) | *Safe Working Pressure - As Supplied (kPa) |
|---|---|---|---|---|---|---|
| Table X | ||||||
| T84212 | 15 # | 0.7 | 1.63 | 500 | 4500 | 5870 # |
| T20192 | 22 # | 0.9 | 3.09 | 300 | 3920 | 5120 # |
| T19488 | 28 # | 0.9 | 3.98 | 200 | 3060 | 3990 # |
| T26271 | 35 | 1.2 | 6.61 | 100 | 3270 | 5150 |
| T63657 | 42 | 1.2 | 7.98 | 100 | 2710 | 4270 |
| T58271 | 54 | 1.2 | 10.33 | 50 | 2090 | 3300 |
| T23957 | 66.7 | 1.2 | 12.81 | 50 | 1690 | 2660 |
| T21962 | 76.1 | 1.5 | 18.24 | 50 | 1850 | 2920 |
| T55450 | 108 | 1.5 | 26.04 | 30 | 1300 | 2040 |
| Table Y | ||||||
| T70025 | 15 # | 1.0 | 2.28 | 500 | 6570 | 8570 # |
| T21741 | 22 # | 1.2 | 4.07 | 300 | 5310 | 6920 # |
| T56146 | 28 # | 1.2 | 5.24 | 200 | 4120 | 5370 # |
| T26204 | 35 | 1.5 | 8.19 | 100 | 4120 | 6490 |
| T86606 | 42 | 1.5 | 9.90 | 100 | 3410 | 5370 |
| T69035 | 54 | 2.0 | 16.95 | 50 | 3540 | 5580 |
| T17566 | 66.7 | 2.0 | 21.09 | 50 | 2840 | 4480 |
| N/A | 76.1 | 2.0 | 24.15 | 50 | 2480 | 3910 |
| T23045 | 108 | 2.5 | 42.99 | 30 | 2180 | 3440 |
* Based on annealed temper at 65°C
** Based on nominal diameter and thickness
# Manufactured in half hard temper, all other sizes are hard drawn
